Titanium and titanium alloy heads (Titanium Head/Titanium Cap) are indispensable pressure-bearing components used in pressure vessels, heat exchangers, reaction kettles, and pipeline systems. Leveraging the superior corrosion resistance, high strength-to-weight ratio, and high-temperature resistance of titanium materials, titanium heads are widely employed in industries such as chemical engineering, offshore engineering, pharmaceuticals, food processing, chlor-alkali production, and aerospace. Utilizing the industrial advantages of Baoji – home to "China Titanium Valley" – Baoji Aulister Import & Export Co., Ltd. specializes in the deep processing of non-ferrous metals including titanium, tantalum, niobium, molybdenum, and nickel. The company provides global customers with custom manufacturing services based on their design specifications for products such as TA2 semi-spherical pure titanium heads, elliptical titanium metal heads, and stamped titanium tube caps.

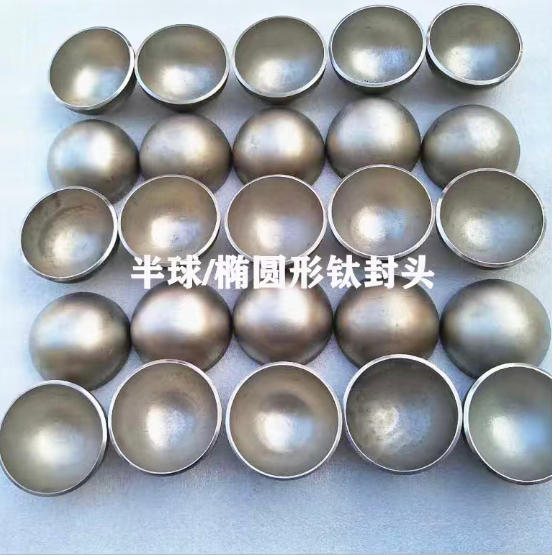

1. TA2 Hemispherical Pure Titanium End Cap: Manufactured from high-quality TA2 (Gr.2) pure titanium sheets through integrated stamping or spinning forming processes, this end cap features uniform wall thickness, a smooth surface finish, and exceptional pressure-bearing capacity – making it ideal for use as an end cover on pressure vessels operating under high-pressure or highly corrosive conditions.
2. Elliptical Titanium Alloy Head (EHA/EHB): A standard elliptical head featuring moderate depth and stable manufacturing – the most commonly used type of head for chemical storage tanks and reaction vessels; can be manufactured in accordance with standards such as GB/T 25198 and ASME.
3. Stamped titanium pipe caps (Pipe Cap) – designed for sealing pipeline ends; available in a wide range of specifications covering small to large diameters, including various types such as flat end caps, hemispherical pipe caps, and elliptical pipe caps; features excellent weldability.
Parameter Term | Specifications |
Common alloy grades | TA1(Gr.1)、TA2(Gr.2)、TA3(Gr.3)、TA4(Gr.4)、TC4(Gr.5)、Gr.7、Gr.12 |
product type | Hemispherical head, elliptical head (EHA/EHB), disc-shaped head, flat-bottomed head, conical head, pipe cap |
operative norm | GB/T 25198, ASME BPVC, ASTM B265 (sheet metal), ASTM B381 (forged parts) |
Diameter range | DN100 – DN6000 mm (customizable according to drawings) |
Wall thickness range | 2 – 60 mm |
fabrication process | Stamping, spinning, hot-pressing/cold-pressing, welding and splicing |
surface preparation | Acid pickling, sandblasting, polishing – as per customer requirements |
surveillance project | Dimensional inspection, PT penetrant testing, UT ultrasonic testing, hydrostatic testing, material spectral analysis |
application area | Chemical pressure vessels, heat exchangers, reaction kettles, offshore engineering, pharmaceutical equipment, chlor-alkali industry, aerospace |
· TA1 / Gr.1: Highest purity and optimal workability – ideal for cold forming and deep-drawing applications;
· TA2 / Gr.2: Balances strength and corrosion resistance, making it the most widely used head grade in the industrial sector;
· TA3 / Grade 3; TA4 / Grade 4: Higher strength – suitable for medium-and high-pressure pressure-bearing equipment;
· TC4/Gr.5: Titanium alloy with high strength, suitable for aerospace applications and high-strength structural components;
· Grade 7 / Grade 12: Palladium/Nickel-Molybdenum alloy – offers superior resistance to crevice corrosion, making it ideal for highly corrosive chemical environments.
We are headquartered in Baoji, Shaanxi Province, and operate an independent deep-processing workshop for non-ferrous metals. Our entire production process – from titanium plate procurement and cutting to stamping/rolling, welding, and inspection – is fully controllable, supporting both small-batch customization and large-scale mass production. For all products, we can provide Material Certificate (MTC) and third-party inspection reports, ensuring that every head meets international standards.
Whether you require standard sizes or custom non-standard specifications, please send us your drawings or technical specifications – we will provide you with a professional quotation and technical solution within 24 hours.
